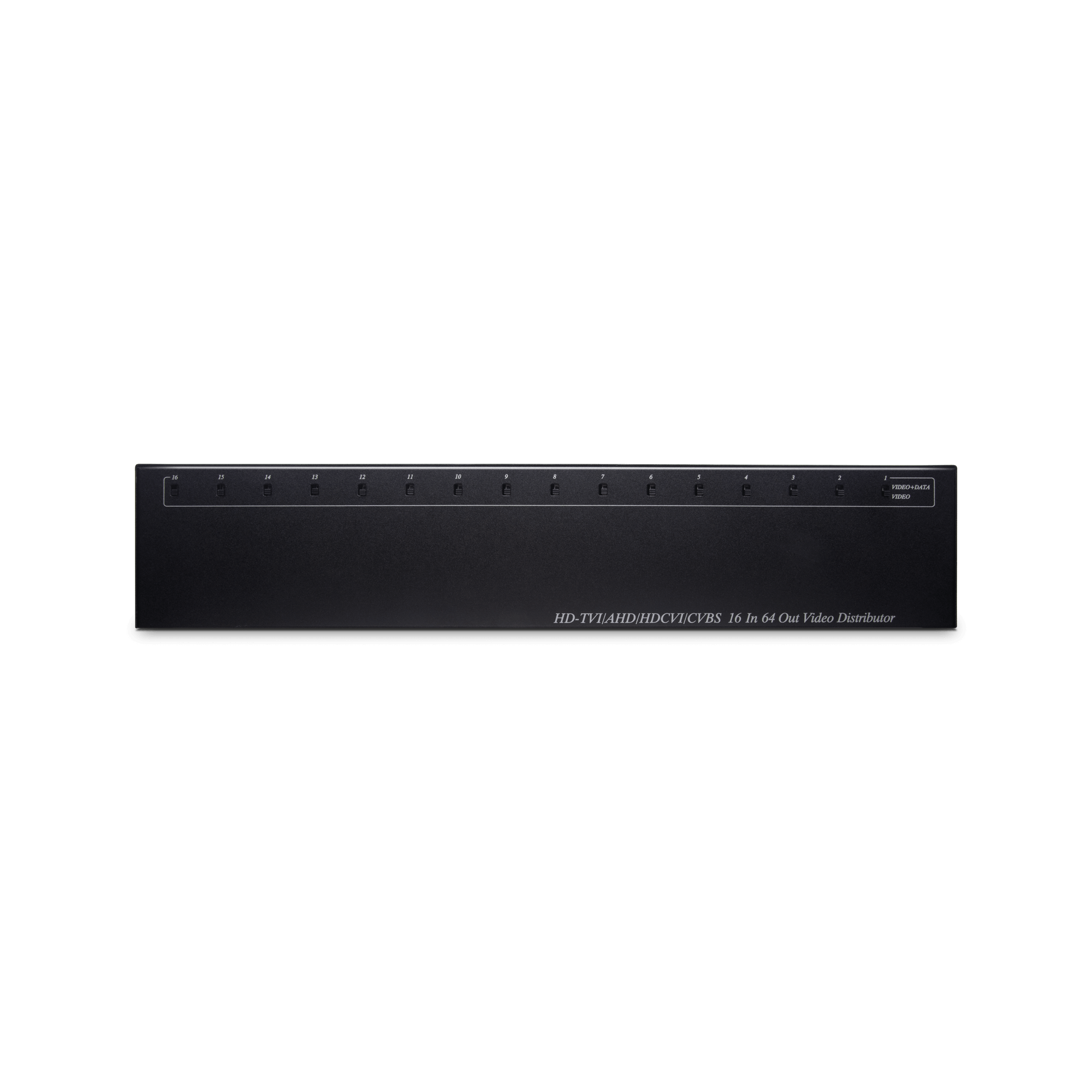

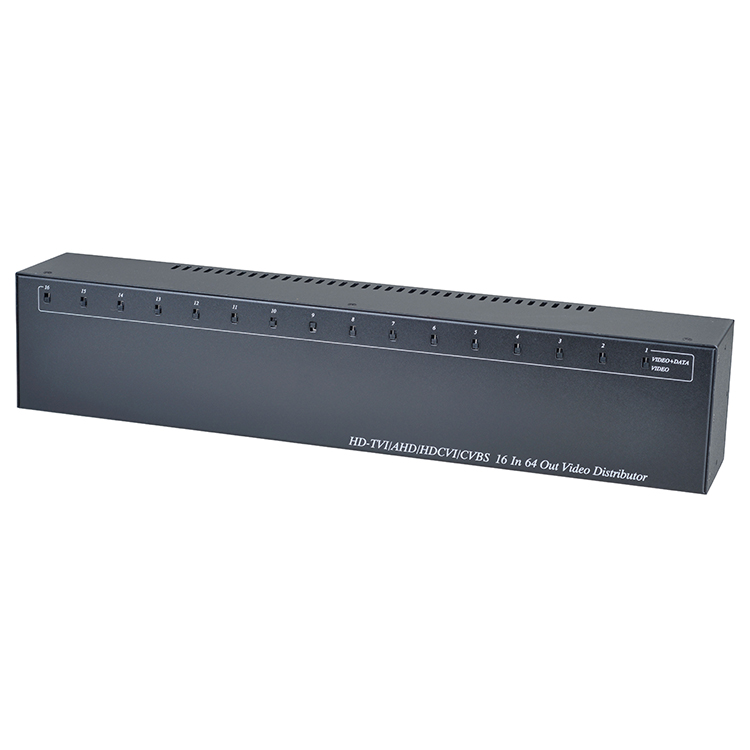

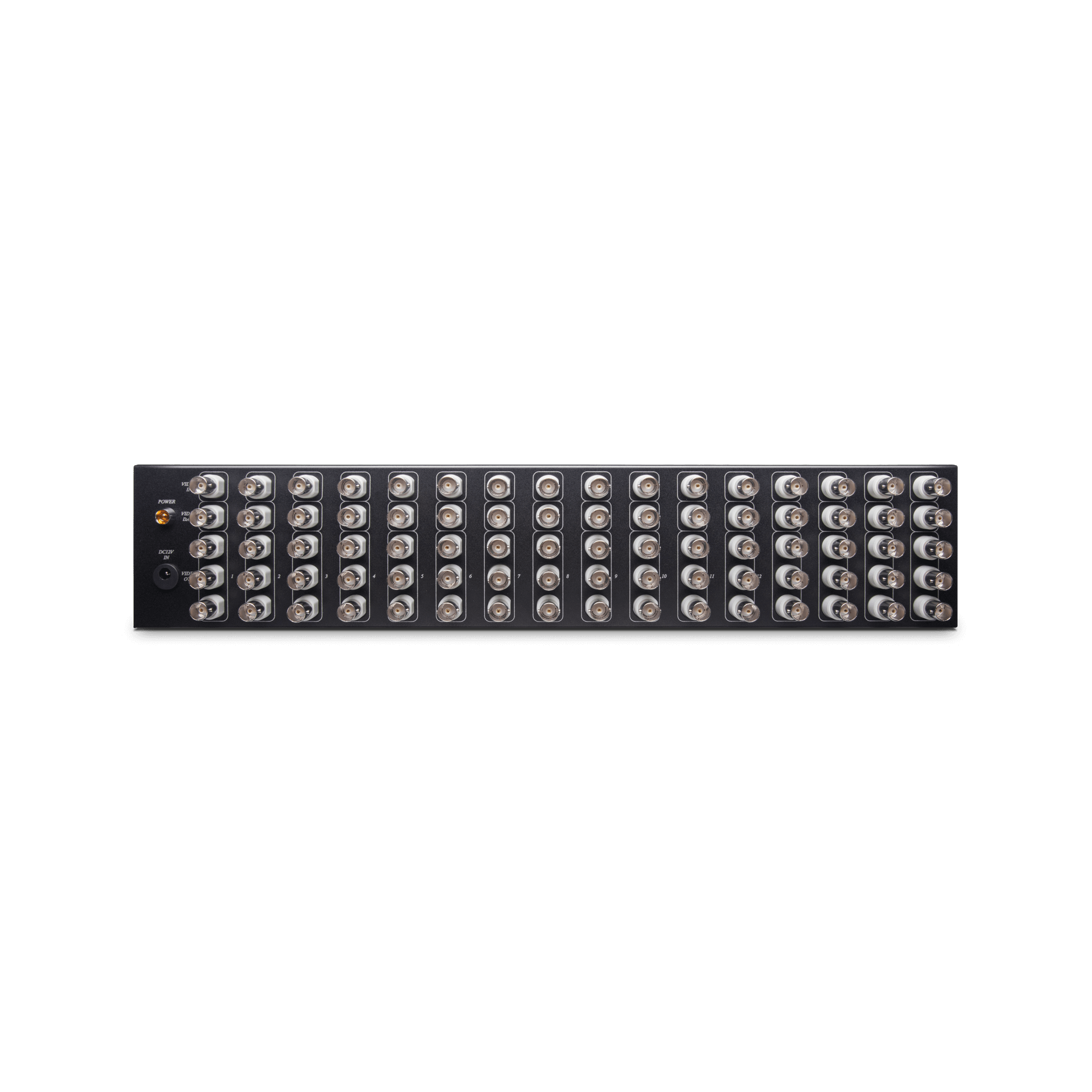

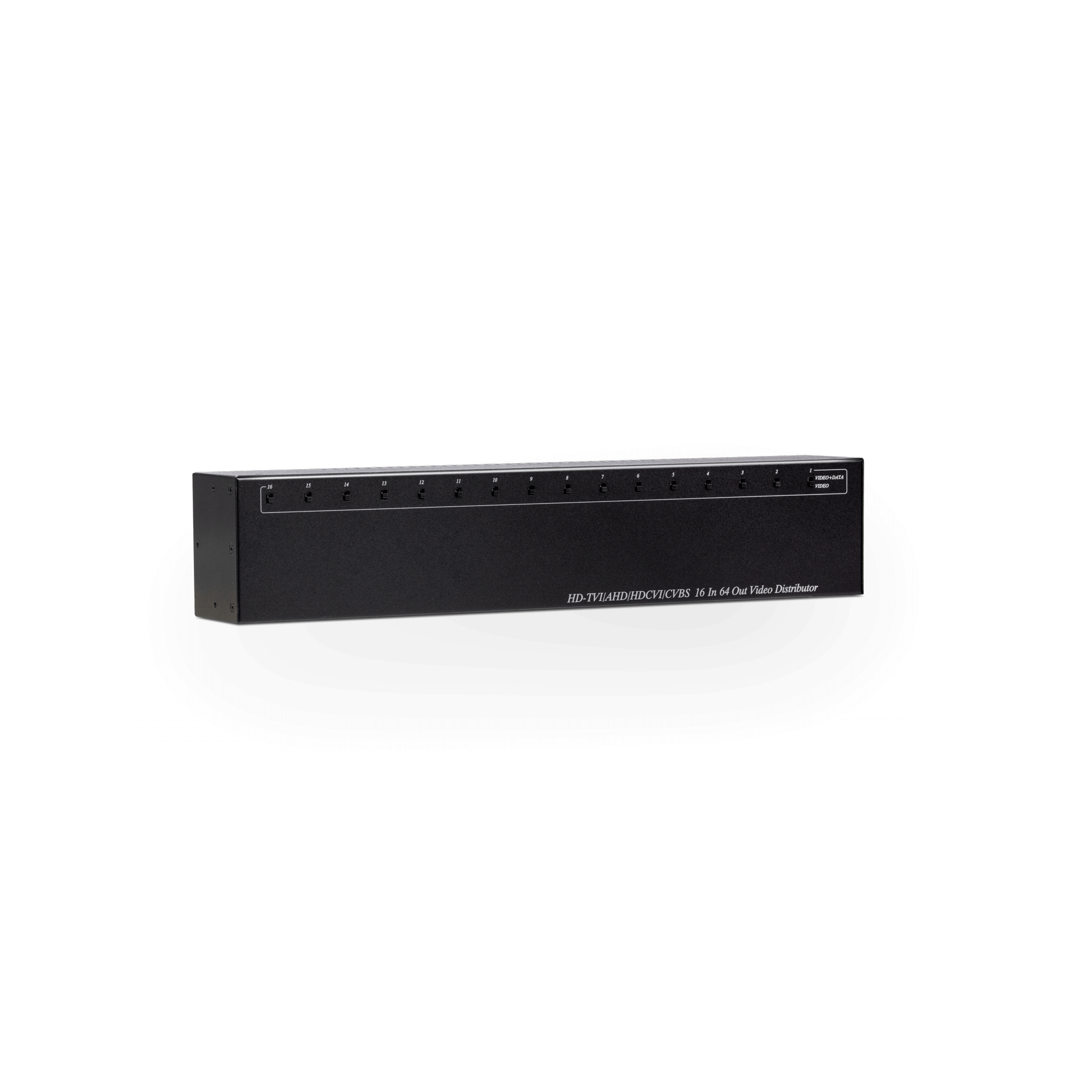

SCD1664HD

16 in 64 out HD-TVI/AHD/HDCVI/CVBS Video Distributor in 2U Rack

• 16 video input to 64 video output. (16 sets 1 in 4 out video distributor)
• Support HD-TVI, AHD, HDCVI, 960H, NTSC, PAL video signal.
• Support high resolution up to 4K/1080P without any video loss
• Each channel with one output support HD video + data control mode
• Video input, output, power input built in TVS protection
